Some Proterozoic Rocks 1

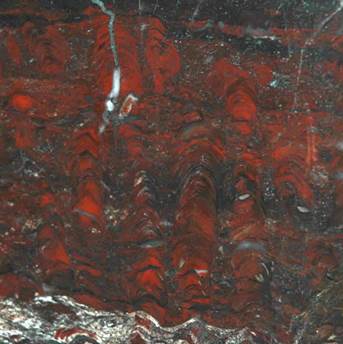

Biwabik Iron-Formation - 2.3 Ga stromatolitic ferruginous chert from the
Mesabi Iron Range of northern Minnesota, USA.

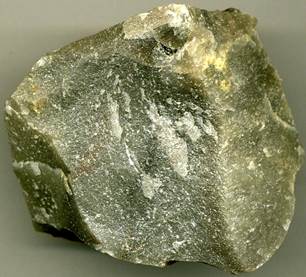

Lorrain Quartzite - 2.3 Ga quartzite from Manitoulin Island, Ontario, Canada.
Hotazel Formation - 2.2-2.3 Ga sugilite (purple) and ~2.05 Ga
sedimentary manganese-oxide rock (dark brown) from the Kalahari Manganese
Field, South Africa.
Mesnard Quartzite - 2.2-2.29 Ga metaquartzite from Marquette, Michigan’s
Upper Peninsula, USA.
Kona Dolomite - 2.2-2.29 Ga silicified metadolostone from southwest of Marquette,
Michigan’s Upper Peninsula, USA.
Wewe Slate - 2.2-2.29 Ga slate from the Ragged Hills, Michigan’s Upper Peninsula,
USA.

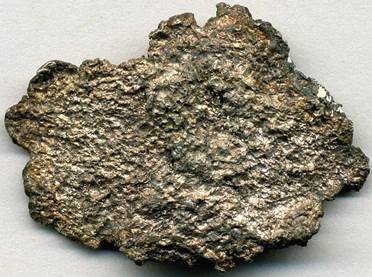

Silver
from a 2.217 Ga (~mid-Paleoproterozoic) hydrothermal vein intruding the
Gowganda Formation (Paleoproterozoic, 2.288 Ga) at McKinley-Darragh Mine,
Ontario, Canada.
Ajibik Quartzite - 2.1-2.2 Ga metaquartzite from the Ragged Hills,
Michigan’s Upper Peninsula, USA.
Siamo Slate - 2.1-2.2 Ga slate from near Mud Lake, Michigan’s Upper Peninsula,
USA.
Negaunee Iron-Formation - 2.11 Ga (or 1.874 Ga) jaspilite (left) &
specularite-quartzite BIF (center) & specularite (right) from the Marquette
Iron Range, Michigan’s Upper Peninsula, USA.
Negaunee Iron-Formation - 2.11 Ga (or 1.874 Ga) fossiliferous
ferruginous mudshale from the Empire Mine, Michigan’s Upper Peninsula, USA.

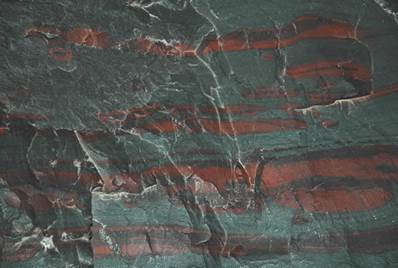

Vulcan Iron-Formation - 2.1 Ga jaspilite BIF from Vulcan, Michigan’s Upper
Peninsula, USA.

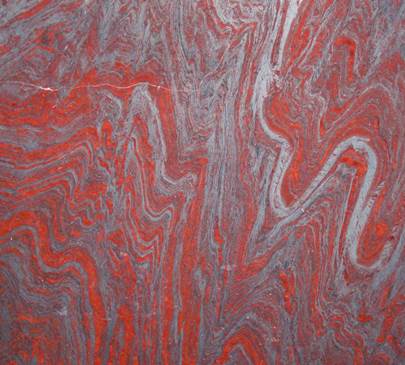

Minas Supergroup (“Hollywood Granite”) - Paleoproterozoic-aged folded
jaspilite meta-iron formation (meta-BIF) from the Iron Quadrangle District,
Minas Gerais State, Brazil.

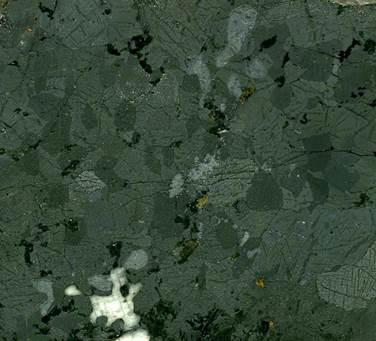

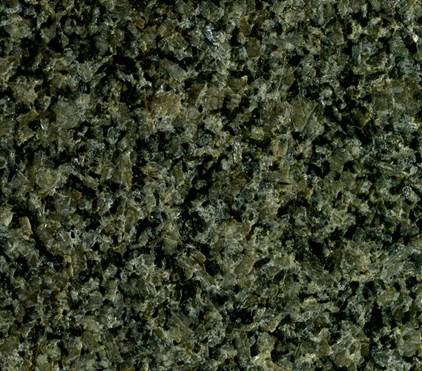

Bushveld Complex (“Impala Black Granite”) - 2.054-2.061 Ga
gabbronorite from Rustenburg, South Africa.

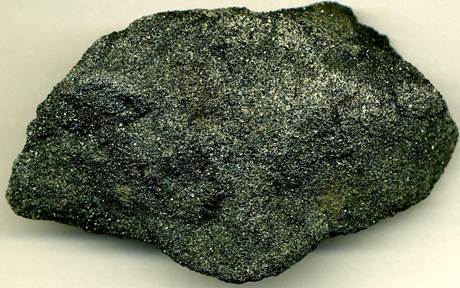

Bushveld Complex - 2.06 Ga chromitite from the Mooinooi Mine, South
Africa.

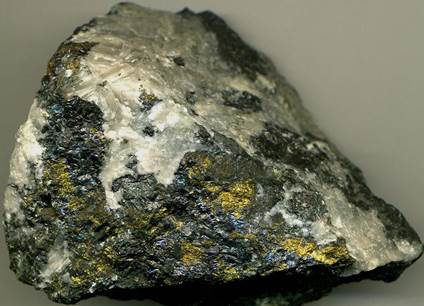

Phalabowra Complex - 2.06 Ga calciocarbonatite with
magnetite-chalcopyrite-bornite (copper ore) from the Loolekop Pipe, South
Africa.
Vredefort Granophyre - 2.023 Ga melt-matrix impact breccia from Vredefort
Impact Crater, South Africa.

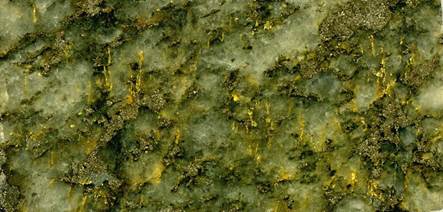

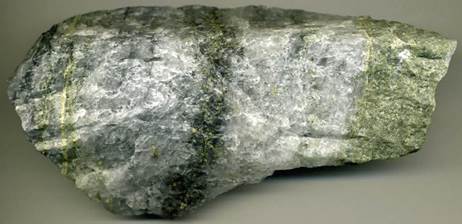

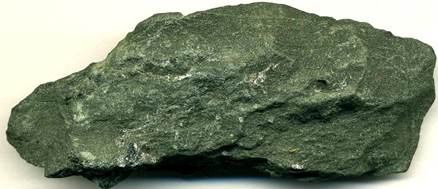

Homestake Formation - 1.9-2.0 Ga auriferous greenschist from the
Homestake Mine, town of Lead (pronounced “Leed”), northern Black Hills, South
Dakota, USA.
Homestake Formation - 1.9-2.0 Ga gold ore from the Homestake Mine, town
of Lead (pronounced “Leed”), northern Black Hills, South Dakota, USA.
Left:
~3.5 cm across. Right: ~1.25 cm across.

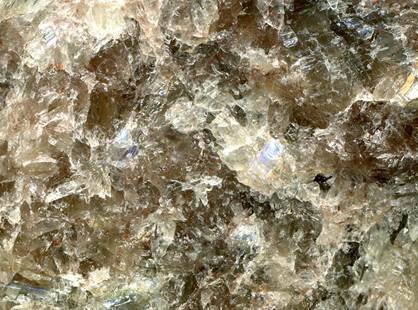

Beaver Bay Complex - pre-1.9 Ga anorthosite xenolith (inclusion) hosted in
1.13 Ga intrusive igneous rocks of the Beaver Bay Complex, northeastern
Minnesota, USA.

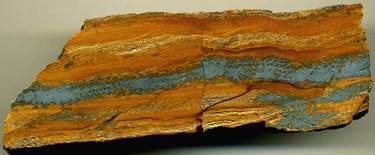

Lower Middleback Iron-Formation - 1.859-1.945 Ga banded iron formations (BIFs) from
near the Iron Duke Mine, South Australia.

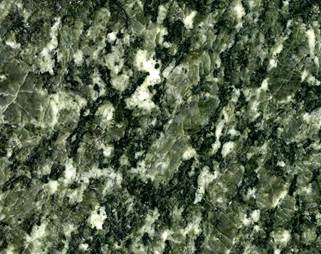

“Verde Lavras Granite” - 1.9 Ga orthogneiss
(metamonzogranite) from Lavras, Minas Gerais State, southeatern Brazil.

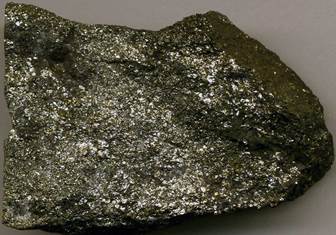

Flambeau Volcanogenic Massive Sulfide Deposit - Paleoproterozoic volcanogenic massive sulfide rock
from the Flambeau Mine, northwestern Wisconsin, USA.

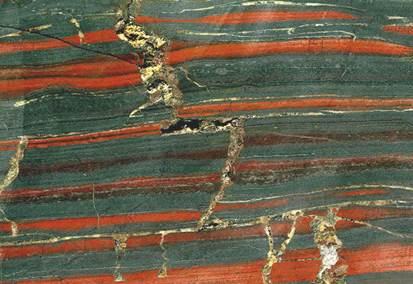

Ironwood Iron-Formation - 1.874-1.878 Ga jaspilite BIF from Wakefield,
Michigan’s Upper Peninsula, USA.

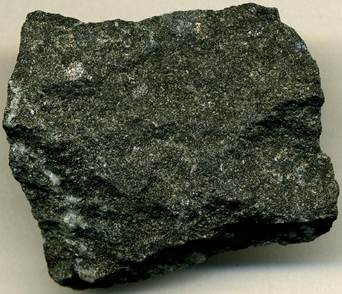

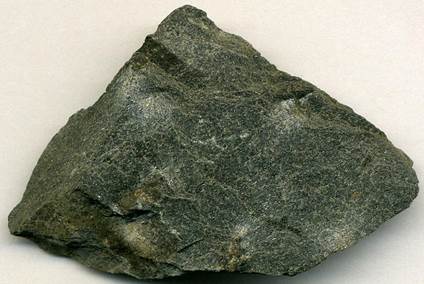

Michigamme Formation - 1.85-1.86 Ga schist from Lake Michigamme, Michigan’s
Upper Peninsula, USA.

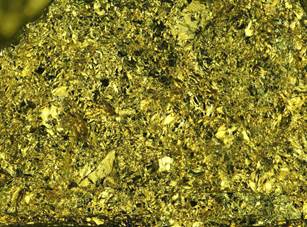

Sudbury massive sulfides - 1.85 Ga chalcopyrite (left) & pentlandite in
pyrrhotite (right) from the Sudbury Impact Structure, Ontario, Canada.

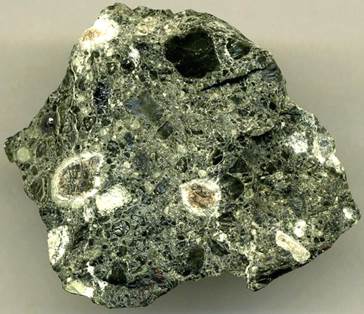

Black Onaping Impact Breccia - 1.85 Ga impact breccia from the Sudbury Impact
Structure, Ontario, Canada.
Akluilâk Dike - 1.832 Ga microdiamondiferous ultrapotassic minette from the Gibson
Lake area, “Nunavut”, northern Canada.
Nalunaq Gold Ore - 1.77-1.80 Ga quartz-gold vein in calc-silicate
altered wall rock from the Nalunaq Gold Mine, southern Greenland.
Santa Elena Placer Gold Deposit - 1.7-1.8 Ga gold crystal in modern placer, but
derived from the Uairén Formation in Bolivar State, southeastern Venezuela.
Yinnietharra Pegmatite - 1.48 to 1.80 Ga dravite tourmaline from pegmatitic
granite near Yinnietharra Station Homestead, Western Australia.
Volodarsk-Volhynsky Intrusion - 1.758-1.760 Ga anorthosite from the Korosten Pluton
in Zhitomir Province, northwestern Ukraine.
Thackaringa Group - 1.688-1.710 Ga albitite from Thackaringa, New South
Wales, southeastern Australia.
Willyama Supergroup - 1.66 Ga tourmalinite (= banded rock at left) with
Cambrian-aged, argentiferous galena hydrothermal vein (= silvery-colored
material at right) from the Umberumberka Mine, New South Wales, Australia.

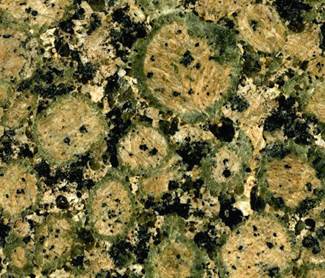

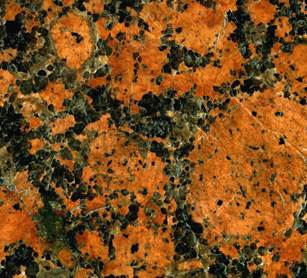

Wiborg Batholith (“Baltic Brown Granite” (wiborgite) & “Baltic Red
Granite” (pyterlite) - 1.615-1.645 Ga rapakivi granites from southern Kymi
Province, southern Finland.
Broken Hill Block - gahnitic granite from the early Mesoproterozoic at
Southern Cross, New South Wales, Australia.

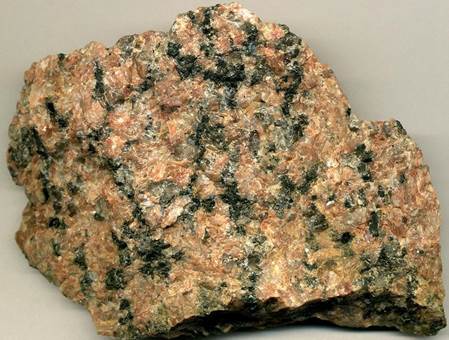

Nine Mile Granite - 1.505 Ga granite (with pinkish K-feldspar, dark
gray quartz, and black biotite mica) from the Ladick Quarry, southern Marathon
County, north-central Wisconsin, USA.

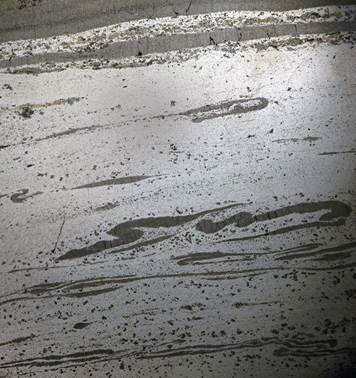

Aldridge Formation - 1.47 Ga banded silver-lead-zinc-ore (massive
sedimentary exhalative sulfide deposit - SEDEX) from the Sullivan Mine, British
Columbia, Canada.

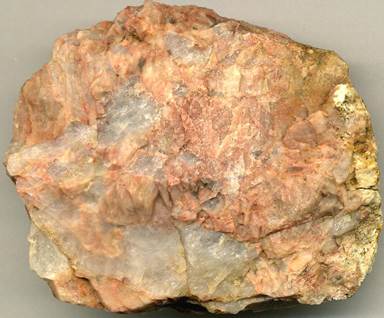

Mount Evans Batholith - 1.44 Ga alaskite granite (with pinkish K-feldspar
and whitish-gray quartz) from near the summit of Mt. Evans, Clear Creek County,
WSW of Denver, central Colorado, USA (7.8 cm across at its widest).
Laramie Anorthosite Complex - 1.43 Ga nelsonite from the Laramie Range,
southeastern Wyoming, USA.

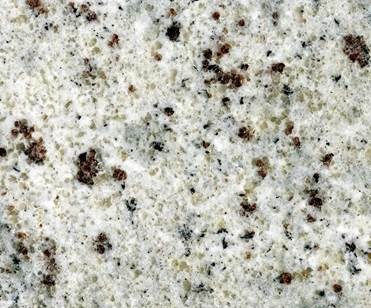

“Kashmir White Granite” - 1.4 Ga garnetiferous granulite from Melur Taluk, Tamil Nadu State, far-southern India.

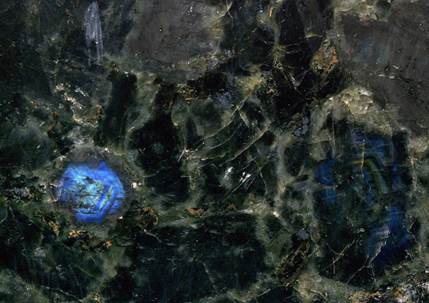

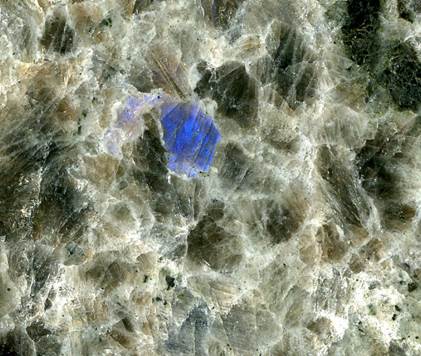

Nain Plutonic Suite (“Blue Eyes Granite”) - 1.29-1.35 Ga anorthosite from
Ten Mile Bay Quarry, Labrador, eastern Canada.
Voisey’s Bay Ni-Cu-Co Magmatic Sulfide Deposit - 1.333 Ga sulfidic gabbro from the Nain Plutonic
Suite at Voisey’s Bay Mine, Labrador, eastern Canada.

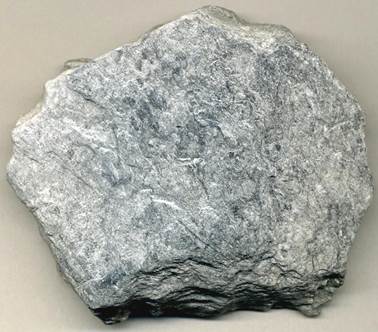

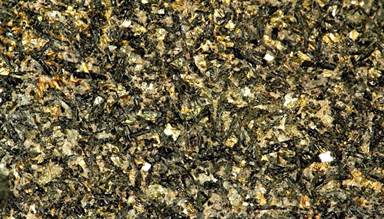

Allamoore Formation - 1.25 Ga talcose metamorphite from the Bridges Talc
Mine, Allamoore, far-western Texas, USA.
“Madocite” - 1.24 Ga tourmaline-pyrite
metamorphite from Madoc, southeastern Ontario, southeastern Canada.
Premier Kimberlite Pipe - 1.2 Ga kimberlite from the Premier Mine, South
Africa.
