KIMBERLITES & LAMPROITES
Kimberlites and lamproites have tremendous economic importance because they
are host rocks for gem-grade and industrial-grade diamonds. Kimberlites
& lamproites are unusual igneous bodies having overall pipe-shaped
geometries. Their mode of formation is only moderately understood because
they have not been observed forming. Kimberlites & lamproites are
known from scattered localities throughout the world - only some are
significantly diamondiferous. Classic localities for diamonds are India
and Brazil. Africa was also discovered to have many kimberlites and is
world-famous for producing large numbers of diamonds. Other notable
diamondiferous kimberlite-lamproite occurrences include Russia, China,
northwestern Australia, and northwestern Canada.
Kimberlites are named for the town of Kimberley, South Africa. Several
kimberlite pipes occur in the Kimberley area (see rock below).

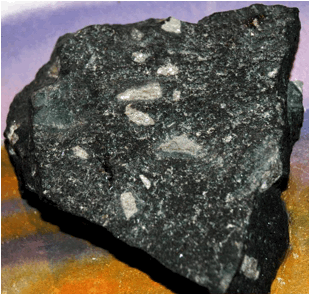

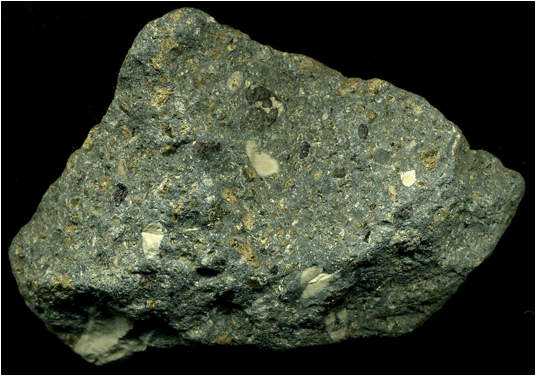

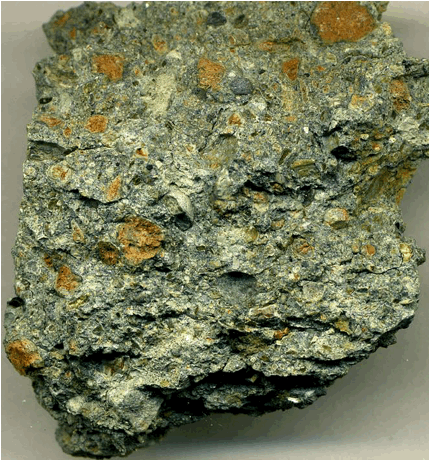

Kimberlite from a Cretaceous-aged diamondiferous pipe at Kimberley, South Africa
(CMNH 18991R, Cleveland Museum of Natural History, Cleveland, Ohio, USA).
PREMIER KIMBERLITE
Premier Kimberlite (4.5 cm across) from the Mesoproterozoic of South
Africa. The largest gem-quality diamond ever found came from the Premier
Kimberlite Pipe near the town of Cullinan, ~30 km northeast of Pretoria, in
northeastern South Africa. When found in 1905, the Cullinan
Diamond measured 10.5 cm (4.25 inches) across at its widest (about the size
of a fist), and weighed ~1.5 pounds. Uncut, the Cullinan was 3026
carats. The Cullinan was cut into 105 gemstones, the largest of which is
the Great
Star of Africa (530 carats), on display with the British Crown Jewels in
the Tower of London.
The Premier Kimberlite Pipe erupted about 1.2 billion
years ago, during the Mesoproterozoic. It is significantly diamondiferous
(some of
the diamonds pictured here are from the Premier Kimberlite).
Published inclusion dating studies have shown that Premier diamonds fall out
into three age groups:
1) ~1.2 billion year eclogitic diamonds
(Mesoproterozoic)
2) ~1.9 billion year lherzolitic diamonds
(Paleoproterozoic)
3) ~3.2 billion year diamonds (Mesoarchean)
KOIDU KIMBERLITE
Koidu Kimberlite from the Jurassic of Sierra Leone, Africa. The
large, rounded serpentinized olivine crystal at upper left is just over 4 mm
across.
This bluish-green kimberlite is from the
diamondiferous Koidu Kimberlite Complex of Jurassic age in eastern
Sierra Leone, West Africa. The rounded, whitish- to pale green-colored
grains are serpentinized olivine crystals having a mesh texture (reticulate
texture) (just discernible in the photo). The sample is probably from one
of the kimberlite dikes in the area (Dike Zone B, C, or D of Tompkins &
Haggerty, 1984).
Location:
Yengema-Koidu (Sefadu) area, eastern Sierra Leone, West Africa (approximately
8¡ ~35-40' North, ~11¡ West).
Info. mostly synthesized from: Linda Tompkins (pers. comm.), Stuart McRae (pers.
comm.), Tompkins & Haggerty (1984 - Kimberlites I: kimberlites and related
rocks, Proceedings of the "Third International Kimberlite
Conference", volume 1, Developments in Petrology 11A).
PRAIRIE CREEK LAMPROITE

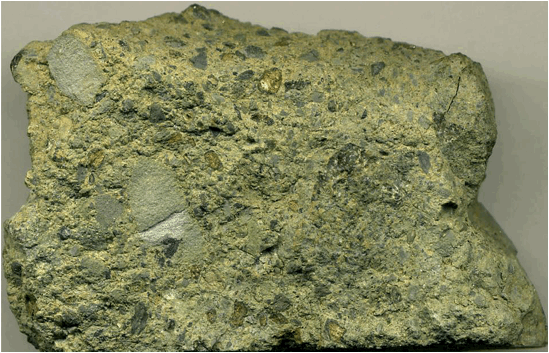

Prairie Creek Lamproite - weathered olivine lamproite (6.3 cm across) from
Crater of Diamonds, Arkansas, USA. The light-colored grains are
deteriorated olivine crystals.
The only publicly-accessible diamond collecting site
in America is Crater of Diamonds State Park, just south of Murfreesboro, in
Pike County, southwestern Arkansas, USA (34¡ 1' 55" to 34¡ 2' 5"
North, 93¡ 40' 18" to 93¡ 40' 25" West). There, diamondiferous
lamproitic rocks of the Prairie Creek Lamproite (a.k.a. Prairie
Creek Pipe) are exposed (actually, it's just a field of rocky dirt).
Diamonds are found by tourists on a daily basis. The Prairie Creek
Lamproite is an ultramafic pipe that intrudes Proterozoic-aged (Grenvillian)
basement rocks. Rocks of the Prairie Creek complex date to about 106
million years (mid-Albian Stage, late Early Cretaceous).

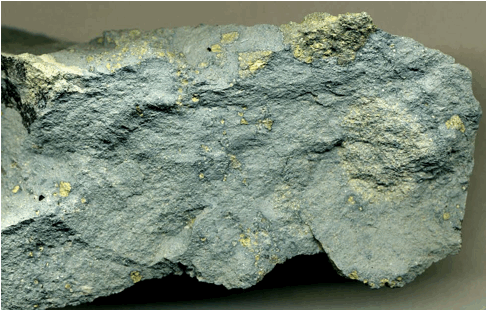

Prairie Creek Lamproite - bluish, lamproitic volcanic tuff (7.7 cm across)
from western side of southern-most pipe at Crater of Diamonds State Park,
Arkansas, USA (same locality as the next rock above). Three distinctive
lithofacies occur at Crater of Diamonds - a lamproite pipe facies, a lamproitic
volcanic breccia facies, and a lamproitic volcanic tuff facies. This
bluish rock is from the tuff facies, although it does have obvious large
fragments - not really what's supposed to be in a "tuff" - it's more
of a volcanic breccia.
Age:
about 106 million years, mid-Albian Stage, late Early Cretaceous.
BLUE BALL LAMPROITE
Blue Ball Lamproite (3.0 cm across) - this blackish rock comes from the Blue
Ball Lamproite Dike of western Arkansas, USA. Rocks of the Blue Ball
Lamproite consist of phlogopite and serpentinized olivine in a groundmass of
mica, chromite, Ti-magnetite, perovskite, and carbonate. This dike
intruded at about 106 million years (mid-Albian Stage, late Early Cretaceous).
Locality:
northern side of Freedom Creek, ~0.45 km northwest of the Freedom Creek-Dutch
Creek intersection, south of Rt. 80, north of Dutch Creek Mountain (ridge),
between the towns of Union Hill and Blue Ball, far-eastern Scott County,
western Arkansas, USA (about 34¡ 56' 14" North, 93¡ 45' 33" West).
Most info. provided by Jack King.
JERICHO KIMBERLITE

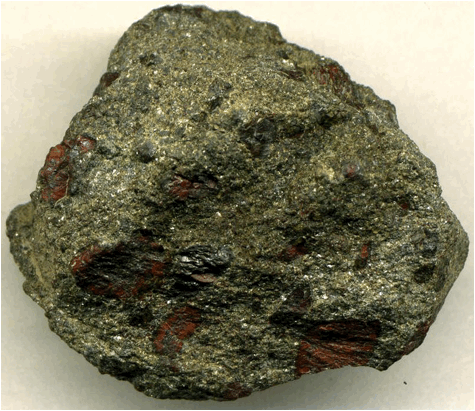

Jericho Kimberlite (8.4 cm across) - the diamondiferous Jericho
Kimberlite is a cluster of 3 pipes discovered in the mid-1990s at Echo Bay,
near the northern part of Contwoyto Lake, northern Slave Province, southwestern
Nunavut Territory (near the border with the Northwest Territories), in the
Canadian Arctic (~420 km north-northeast of the city of Yellowknife). The
pipe complex intruded during the mid-Middle Jurassic, at about 172 million
years. The rock has a bluish-gray color & is full of interesting
fragments, including reddish garnets and nice phlogopite flakes.
Location:
Echo Bay Mine of Canada (65¡ 59' 50-55" North, 111¡ 28' 30-45" West).
ARGYLE LAMPROITE
Northwestern Australia's diamondiferous Argyle
Lamproite was discovered in October 1979 using the classic prospecting
technique of identifying indicator minerals in stream sediments. It is a
unique diamondiferous unit due to its relative abundance of pink
diamonds. Elsewhere on Earth, pink diamonds are exceedingly rare (two
famous examples of subtly pink diamonds were found at Golconda, India and
Tanzania, Africa). Pink diamonds from the Argyle Lamproite can be
intensely pink, unlike those from outside Australia.
Several different colors of diamonds are processed at
the Argyle Mine, including clear ("white"), pink, brown,
yellowish-brown, and a few unimpressive blue diamonds. About 5% of Argyle
diamonds are gem-quality.
Diamond
octahedral crystal from the Argyle Lamproite. The public has been
successfully fooled into buying ugly light brown and dark brown Argyle diamonds
by their being marketed under the names "champagne diamonds" and
"cognac diamonds".

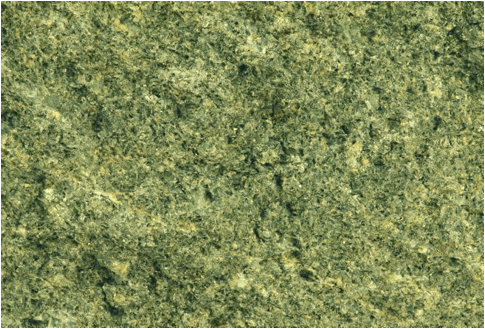

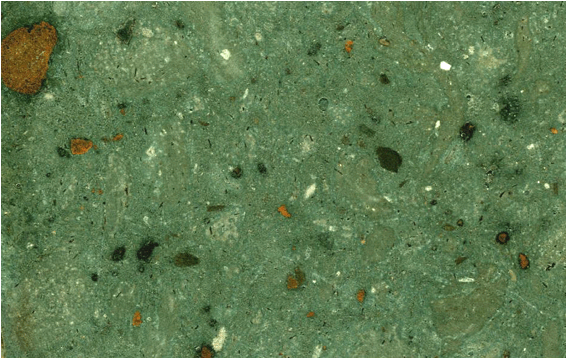

Argyle Lamproite (field of view ~3.7 cm across) - olivine lamproite
lapilli-ash metatuff from the Mesoproterozoic of northwestern Australia.
Two major facies are present in the Argyle Lamproite (aka
Argyle AK1 Lamproite, Argyle Diatreme, Argyle Lamproite Diatreme, Argyle AK1
Pipe): 1) olivine lamproite lapilli-ash metatuff; and 2) sandy lamproite tuff.
The first rock above is from the first facies, olivine
lamproite lapilli-ash metatuff. The original olivines are gone, and
have been replaced by the metamorphic minerals serpentine, talc, and chlorite
(the serpentine & chlorite give the rock its greenish coloration).
Mineral studies indicate that Argyle Lamproite material also contains sericite,
K-feldspar (replacing original leucite), some carbonate, chromite, phlogopite,
and several accessory minerals.

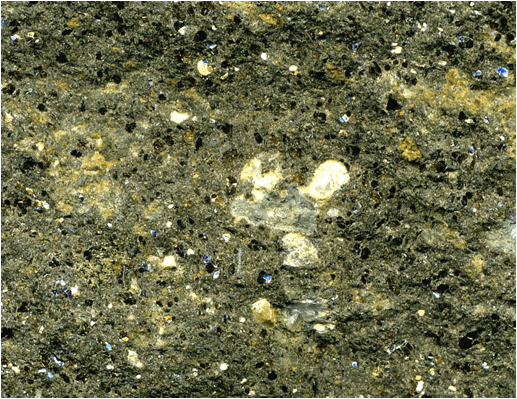

Argyle Lamproite (4.1 cm across) - sandy lamproite tuff from the
Mesoproterozoic of northwestern Australia. This is a sample from the
second facies. It contains ~50% quartz sand grains (= the small specks of
white).
The Argyle Lamproite Pipe erupted during the
mid-Mesoproterozoic, at about 1.178 billion years ago. The included
diamonds are much older (~1.6 billion years). The Argyle Pipe is
fortuitously preserved. Nearby pipes have eroded down to their
roots. A quartzite ridge adjacent to the Argyle has protected it from
erosion.
The pink coloration in some Argyle diamonds is
apparently not the result of chemical impurity, which gives most
diamonds their color variation. The pink color appears to be related to
metamorphism-induced microfaulting or slippage of carbon atoms within the
diamond crystals.
Geologic context: lamproite pipe emplaced along a splay of the
Glenhill Fault, near-eastern margin of the Halls Creek Mobile Zone, eastern
edge of the Kimberley Craton.
Location:
Argyle Mine, near the headwaters of Smoke Creek, west of Lake Argyle,
northwestern Western Australia (~16¡ 14' South, ~128¡ 23' East).
(Info. mostly synthesized from Karen Rice (pers.
comm.), Boxer et al. (1989), Jaques et al. (1989a, 1989b), and Pidgeon et al.
(1989). The latter four references are published in Kimberlites
and related rocks, Volume 1, their composition, occurrence, origin and
emplacement. Geological Society of Australia Special Publication 14.)
INDIAN GUIDE KIMBERLITE

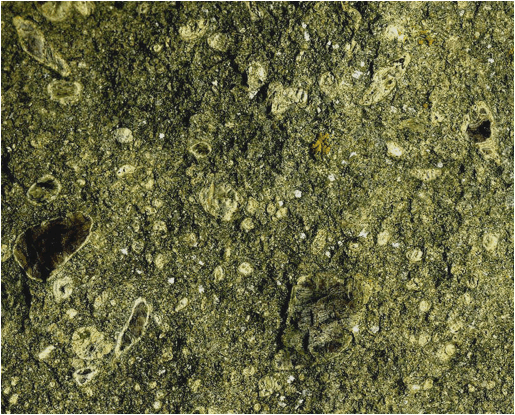

Indian Guide Kimberlite (field of view ~4.7 cm across) from the Devonian of
Wyoming, USA. The Wyoming Geological Survey has identified several
kimberlites and kimberlite fields in Wyoming, including the Indian Guide
Kimberlite Field in southeastern Wyoming. Above is a sample from an
Indian Guide kimberlite dike that consists of serpentinized olivines and garnets
having whitish reaction rims. Dike emplacement occurred during the Early
Devonian. Kimberlites in this area have intruded through the Sherman
Granite, an widespread Proterozoic unit (1.4 billion years) in southeastern
Wyoming.
Location:
undisclosed locality in the Indian Guide Kimberlite Field, Iron Mountain
Kimberlite District, northeast of Laramie, southeastern Wyoming, USA.
WYOMINGITE

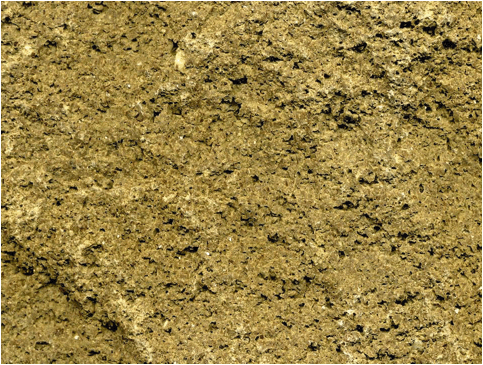

Wyomingite (= peralkaline ultrapotassic lamproite) (~8.8 cm across) from the late
Cenozoic of the Pumice Hills of Wyoming, USA. Some very unusual extrusive
igneous rocks occur in southwestern Wyoming, USA. The sample shown above
is a rare volcanic rock called wyomingite, but it's probably
"better" called a peralkaline ultrapotassic lamproite (a.k.a.
diopside-leucite-phlogopite lamproite). The principal minerals are
reported to be leucite, diopside pyroxene, phlogopite mica, fluorapatite, and
katophorite. This wyomingite is part of the Leucite Hills Volcanic
Province, which experienced eruptions from the Late Pliocene to the Early
Pleistocene (~1.4 to ~3.4 million years). I've not seen a more precise
published date on this particular wyomingite occurrence.
Location:
open-pit mine in the Pumice Hills, east of Zirkel Mesa, Leucite Hills,
northeast of the town of Superior, north-central Sweetwater County,
southwestern Wyoming, USA (~41¡ 47' 53" North, 108¡ 54' 54" West).
LAKE ELLEN KIMBERLITE

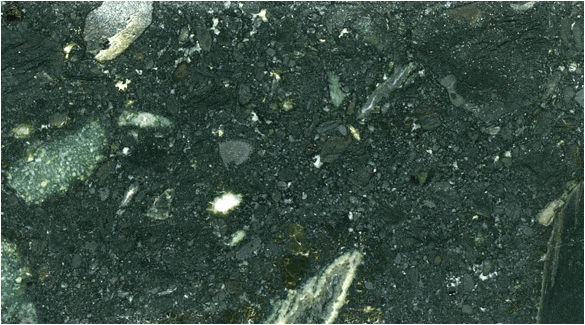

Lake Ellen Kimberlite (field of view ~7.2 cm across) from the Lake Ellen
area, Upper Peninsula of Michigan, USA.
Michigan's Upper Peninsula has a well-known
microdiamondiferous kimberlite body at Lake Ellen, appropriately called the Lake
Ellen Kimberlite Pipe. Reported large fragments and xenoliths in Lake
Ellen Kimberlite rocks include ilmenite, pyroxene, garnet, olivine, phlogopite,
eclogite, pyroxenite, phyllite, amphibolite, gabbro, granulite, and dolostone.
I've not seen a precise published date on the Lake
Ellen Kimberlite, but have heard second-hand that it was emplaced during the
Jurassic (confirmations or corrections are welcome!).
Location:
hill between Michigamme Reservoir and Lake Ellen-Little Lake Ellen
(approximately N1/2, N1/2, NW1/4, Section 34, Kiernan 7.5' USGS topographic
quadrangle), far-eastern Iron County, western UP of Michigan, USA (~46¡ 10'
27" North, 88¡ 10' 30" West).
ISON CREEK KIMBERLITE
Ison Creek Kimberlite (cut & polished surface; 4.5 cm across) from the
Permian of Kentucky, USA. This is the Ison Creek Kimberlite (a.k.a.
Ison Creek Pipe) from northeastern Kentucky. Petrographic studies report
that Ison Creek rocks contain serpentinized olivine, perovskite, ilmenite,
vermiculitized phlogopite, pyrope garnet, bronzite pyroxene, Cr-diopside,
calcite, and xenoliths. Documented xenoliths include Pennsylvanian
Breathitt Formation black shale, limestone, basement granite fragments, and
upper mantle eclogite fragments. The Ison Creek Kimberlite is part of the
Elliott County Peridotite and erupted at about 257 million years (Late
Permian). Diamonds have not yet been reported from this unit.
Locality:
Ison Creek valley area (vicinity of Rt. 409 & Hamilton Creek Road), just
west of Stephens, east of Newfoundland, eastern Elliott County, northeastern
Kentucky, USA (vicinity of 38¡ 07' 35" North, 82¡ 59' 44" West).
Info. mostly synthesized from Schulze (1984), in
Kimberlites II: the Mantle and Crust-Mantle Relationships.
HAMILTON BRANCH KIMBERLITE

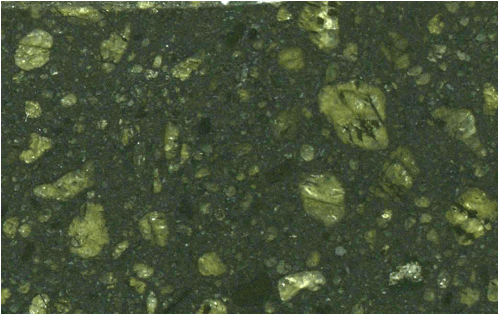

Hamilton Branch Kimberlite (cut & polished surface; field of view ~2.6 cm across) from the Permian of Kentucky, USA. This is a sample from northeastern Kentucky's nondiamondiferous Hamilton Branch Kimberlite (a.k.a. Hamilton Branch Pipe), part of the Late Permian-aged Elliott County Peridotite. It has obvious & abundant serpentinized olivine crystals (rounded to irregularly shaped green masses below). Small xenoliths of eclogite from the upper mantle have been reported from this pipe, but are rare.
Locality:
between Ison Creek and Hamilton Branch (Hamilton Creek), between Rt. 409 and
Hamilton Creek Road, just west of Stephens, east of Newfoundland, eastern
Elliott County, northeastern Kentucky, USA (area of 38¡ 07' 42" North, 82¡
58' 53" West).
Most info. from Schulze (1984), in Kimberlites
II: the Mantle and Crust-Mantle Relationships.
AKLUILåK DIKE
Akluil‰k Dike (4.2 cm across) - microdiamondiferous minette from the late
Paleoproterozoic (1.832 Ga) of the Gibson Lake area, northern Canada.
This is an ultrapotassic minette, a rare intrusive igneous rock.
Minettes are potassic mica lamprophyres. The dark crystals are biotite
mica. The light-colored crystals are orthoclase feldspar. This
particular minette is microdiamondiferous, and comes from the Akluil‰k Dike
System of the Central Churchill Province, northern Canada. The Akluil‰k Dikes
were intruded during the late Paleoproterozoic, at about 1.832 billion years
ago. Microdiamonds found in these rocks are ~2 billion years old.
Locality:
Gibson Lake area, Gibson-MacQuoid Lake Belt, ~120 km northwest of Rankin Inlet,
District of Keewatin, Northwest Territories (sensu lato) ("Nunavut"),
northern Canada (approximately 63¼ 35' North, 93¼ 30' West).
See MacRae et al. (1996) for more info.: MacRae, N.D., A.E. Armitage, A.R. Miller, J.C.
Roddick, A.L. Jones & M.P. Mudry. 1996. The diamondiferous
Akluil‰k lamprophyre dyke, Gison Lake area, N.W.T. in
Searching for diamonds in Canada. Geological Survey of Canada Open
File 3228: 101-107.
CHICKEN PARK KIMBERLITE
Chicken Park Kimberlite (3.0 cm across) - a decent number of kimberlite
bodies have been identified in the Rocky Mountains along the Colorado-Wyoming
border. This is a nice, small kimberlite sample from the diamondiferous
Chicken Park Pipe near Red Feather Lakes in northern Larimer County, northern
Colorado, USA. The Chicken Park Kimberlite Pipe is part of the State Line
Kimberlite Field, traditionally considered to represent many kimberlite bodies
emplaced at about the same time. Recent isotopic dating has indicated
this is not the case. The Chicken Park Pipe is late Neoproterozoic in age
(614 million years).
PICTON KIMBERLITE
Picton Kimberlite (field of view ~2.1 cm across) from the Middle
Jurassic of southeastern Ontario, Canada. The Picton Kimberlite
(informal) is an igneous dike that intrudes the Ordovician-aged Verulam and
Lindsay Formations in southeastern Ontario, Canada. It is exposed in the
western part of the Picton Quarry in Prince Edward County, at the southeastern
margin of Ontario. The unserpentinized olivine grains making up the bulk
of this Picton Kimberlite sample are relatively small. Published research
indicates that phlogopite, calcite, spinel, and serpentine are also
present. This kimberlite dike was emplaced during the Middle Jurassic.
NOONKANBAH LAMPROITE FIELD
Leucite lamproite (wet, cut surface; field of view 5.6 cm across) from
P Hill, Noonkanbah Lamproite Field, West Kimberley Lamproite Province,
northwestern Australia (18¼ 29' 11" South, 124¼ 54' 56" East).
The northern part of Western Australia has many
lamproite intrusions, some of which have been reported to be diamondiferous
(usually microdiamondiferous). The rock shown above is from the
Noonkanbah Lamproite Field, one of four fields in the West Kimberley Lamproite
Province. The Noonkanbah Field consists of over two dozen individual
lamproitic intrusions of late Early Miocene age (18-20 m.y.). The sample
shown here is from the P Hill intrusion, which is not known to be
diamondiferous.
This P Hill rock is a porphyritic leucite lamproite,
which is the dominant lamproitic lithology in the West Kimberley
Province. It consists principally of diopside clinopyroxene, leucite, and
phlogopite mica (which glitters nicely in the proper light on both broken &
cut surfaces).
MORIN KIMBERLITE
Morin Kimberlite (3.9 cm across) from Quebec, Canada.
Southwestern Quebec's TŽmiscamingue Kimberlite Field consists of
several, recently-discovered kimberlite pipes. This is a friable sample
from the Morin Kimberlite. It's from the pipe's crater facies, which is
usually quickly eroded away and rarely preserved in most of the world's
kimberlite bodies. The Morin Pipe is undated, as far as I know. Based
on ages of other kimberlites in southeastern Canada, it wouldn't surprise me if
the Morin was emplaced during the Mesozoic.
This rock appears to consist of serpentinized olivine
(dirty greenish), phlogopite mica, and rotten clasts of something (orangish-brown).
Pyrope garnet is reported from this material as well. The Morin
Kimberlite does contain diamonds, but the mining company that owns the pipe has
determined that it is not economically diamondiferous.
Location:
Morin Kimberlite Pipe, SW of the southern end of Lac des Quinze, ENE of
Ville-Marie, E of Lake Timiskaming, western TŽmiscamingue County, southwestern
Quebec, southeastern Canada.
MIDDLE PARK LAMPROITE
(a.k.a. RABBIT EARS LAMPROITE)
Middle Park Lamproite (10.5 cm across) from the Oligocene of Colorado,
USA. Here's a rock from an unusual, small igneous body west of Lake
Granby in northern Colorado. This is from the Middle Park Lamproite
(= Rabbit Ears Lamproite, but it's not from the Rabbit Ears Pass
locality), an Early Oligocene intrusion (dike? sill? pipe?) having abundant,
flow-aligned phenocrysts of phlogopite mica. The phlogopite (= glittery
flakes) makes this a visually stunning rock (some appear bluish - that's not
real - it's an artifact of scanner light reflectivity). Published
literature indicates that the greenish-gray groundmass consists principally of
analcime, biotite mica, richterite, apatite, ilmenite, and some diopside
pyroxene. The Middle Park Lamproite is not known to be diamondiferous.
Age:
early Early Oligocene, 33 m.y.
Location:
5 to 5.5 km west of Lake Granby (it's not from Rabbit Ears Pass), northeast-central
Grand County, northern Colorado, USA.
Middle Park Lamproite (2.8 cm across) - close-up of the above rock.
Bluish flakes are not bluish on rock - the phlogopite mica flakes are
reflecting the scanner light.
BELLSBANK KIMBERLITE
Bellsbank Kimberlite (6.6 cm across) - here's a sample from South Africa's
diamondiferous Bellsbank Kimberlite. It has the typical appearance
of a kimberlite: a jumbled mix of crystals and clasts. Dirty
green-colored, serpentinized & partially serpentinized olivines with dark
greenish-gray reactions rims are common and conspicuous. Scattered
phlogopite mica and garnet are also present. The Bellsbank Kimberlite intruded
through Proterozoic-aged dolostones of the Ghaap Group during the late Early
Cretaceous (Aptian Stage, 118 m.y.).
Locality:
Bellsbank Mines, near Mount Rupert, north of Kimberley, north-central South
Africa.
MIR KIMBERLITE
Mir Kimberlite - diamondiferous kimberlite from Siberia's Mir
Diamond Mine. Identifiable large fragments in the matrix of this rock
include serpentinized olivine (greenish) and garnet (very dark red).
The Mir Kimberlite Pipe was the first diamondiferous
kimberlite found in Siberia and one of the most important diamond mines
on Earth. The Mir Kimberlite is one of several ultramafic pipes in the Malo-Botuoba
Kimberlite Field of the Siberian Platform. Additional diamondiferous
kimberlite fields have been found elsewhere in Siberia.
Geochronologic studies on rocks and minerals from the
Mir Kimberlite Pipe have given dates ranging from the Archean to the
Phanerozoic. Ages from small inclusions in diamond crystals date well
into the Precambrian, although Mir diamonds appear to have crystallized not
long before eruption of the pipe in the Devonian (there is mounting evidence
indicating diamond inclusion dates don't necessary reliably indicate diamond
crystallization dates).
Available evidence indicates that the Mir Pipe erupted
some time in the Devonian or Mississippian (Early Carboniferous).
Devonian to Mississippian ages have also been obtained from other pipes in the
Malo-Botuoba Kimberlite Field. Published eruption dates for the Mir Pipe
range from 403 to 324 million years. Many studies report dates clustering
around 354 to 360 m.y. (~latest Devonian to Early Mississippian). These
dates roughly correspond to a time of intraplate basalt volcanism in Siberia.
The Mir Kimberlite's geometry is that of a gently
tapering-downward pipe, as are most other kimberlite bodies. The pipe
intrudes Cambrian and Ordovician carbonate rocks, which occur throughout the
Siberian Platform.
Reported xenoliths in the Mir Pipe include Paleozoic
sedimentary rocks, Paleozoic igneous rocks, Precambrian basement rocks, and
mantle rocks (eclogites & several types of peridotites).
Location:
Mirnyy, Yakutia/Sakha, Siberia, Russia (62û 31' 43.93" North, 113û 59'
38.60" East).
Specimen owned by Stan & Pris Woollams.
Kimberlite from the Beartooth Mountains, Stillwater County, southern Montana,
USA.
